Light Industrial Pressure Gauges

The Floyd range of Light Industrial pressure gauges are intended for general industrial conditions, used with pressure or vacuum applications where the measured medium does not corrode brass. These gauges cover a wide variety of ranges from full vacuum to 40,000 kPa (6,000 psi) and are available with brass or black steel cases in the bottom, rear or surface mounting.

This range of Floyd Pressure Gauges combines an aesthetic design offering reliability and performance for light industrial applications and is an ideal solution for general pressure measurement.

General Purpose Pressure Gauges

The ASG Series of General Purpose pressure gauges guarantees long life & durability for indoor, outdoor, and harsh environmental conditions. The ASG range is designed & manufactured to minimize failure and to protect personnel and property, with an emphasis on maintaining quality and accuracy within a general-purpose pressure gauge. With its full stainless steel construction, the ASG range is ideal for resisting chemical, weather, or corrosion effects, & can be supplied dry or liquid-filled when protection is required against pulsation and or vibration.

Standard scales are offered in dual kPa/PSI but also can be modified to suit your special requirements from different scales, colored sectors, purpose wording, logos, and red lines. This Floyd pressure gauge is a type of compound pressure gauge that can be supplied with rangers from -100 - 0 kPa to 0 - 40,000 kPa.

Industrial Pressure Gauges

Floyd Australia Industrial Pressure Gauges are specifically designed to meet the stringent demands of any industrial application. Suitable for all applications where accuracy, repeatability, and long-term stability are of importance. They can be used as a water pressure gauge, or for liquid or gaseous substances within non-corrosive applications where the medium will not attack brass or bronze. Ideally suited to harsh environmental conditions, due to the stainless steel case, which can be supplied dry or liquid-filled when protection is required against pulsation and or vibration. Standard scales are offered in either single scale kPa or dual kPa/PSI but also can be modified to suit your special requirements from different scales, colored sectors, purpose wording, logos, and red lines. Similar to the general purpose pressure gauge, this industrial pressure gauge is also a type of compound pressure gauge that can range from -100 kPa to 60,000 kPa

Heavy Duty Pressure Gauges

Our range of full Stainless Steel pressure gauges offers superior quality and reliability.

Suitable for corrosive applications where the medium will not attack stainless steel. Ideally suited to harsh environmental conditions, due to the all stainless steel construction, which can be supplied dry or if protection is required against pulsation and or vibration these gauges can be supplied liquid filled. An ideal solution for any harsh environment pressure measurement application. Similar to the general purpose pressure gauge and industrial pressure gauge, this heavy-duty pressure gauge is also a type of compound pressure gauge that can range from -100 kPa to 100,000 kPa.

Low-Pressure Gauges

Low-pressure gauges are operated by a capsule system and are only suitable for use on air and some gases. Capsule pressure ranges from -2.5-0 kPa up to 0-60 kpa pressure or vacuum. Offered with stainless steel casing and brass connections for use on the non-corrosive application, but can be offered with stainless steel wetted parts on request. Dial sizes available are 63mm, 100mm, and 150mm.

Safety Pattern Pressure Gauges

Safety pattern design is being used on high-pressure gases, being air, nitrogen, hydrogen, oxygen, acetylene, and others Constructed with a solid front baffle wall and full blow-out-disc in the rear of the case, Perspex windows, and internal restrictor screws fitted into the connections. The purpose of solid front safety gauges is to safeguard users and avoid accidents. The solid front gauge is strengthened at the front, and the back safety casing is designed to blow out. A sturdy partition wall between the front of the gauge and the Bourdon tube system sends the released energy to the rear of the gauge, where the blow-out back of the safety case design drives any loose components or media to depart through the back of the gauge.

Speciality Gauges

At Floyd's, we are able to offer manufacture, restoration and repair service to suit old existing machinery. This service applies to pressure and temperature gauges

Refrigeration Gauges

This service applies to pressure and temperature gauges, for use on industrial refrigeration equipment and can be offered to suit all refrigeration gases. Supplied with dual scales, inner pressure in black and the outer temperature in red. Can be offered in dry steel cases or stainless steel glycerine filled to protect against pulsation and vibration. Normally supplied in two different mountings, surface mount with a back flange and flush with a 3-hole fixing front flange. Dial sizes 63mm and 100mm. Refrigeration gauges are also a type of compound pressure gauge that can display both positive and negative pressure measurements.

Test Gauge

Precision test gauges are manufactured to the highest standard in quality. Used for the testing of industrial gauges or equipment of the same standard. For quality control testing requirements it is not always necessary to use a primary standard such as a dead weight tester, therefore a secondary standard such as a test gauge can be used, being a more convenient and economical method of testing.

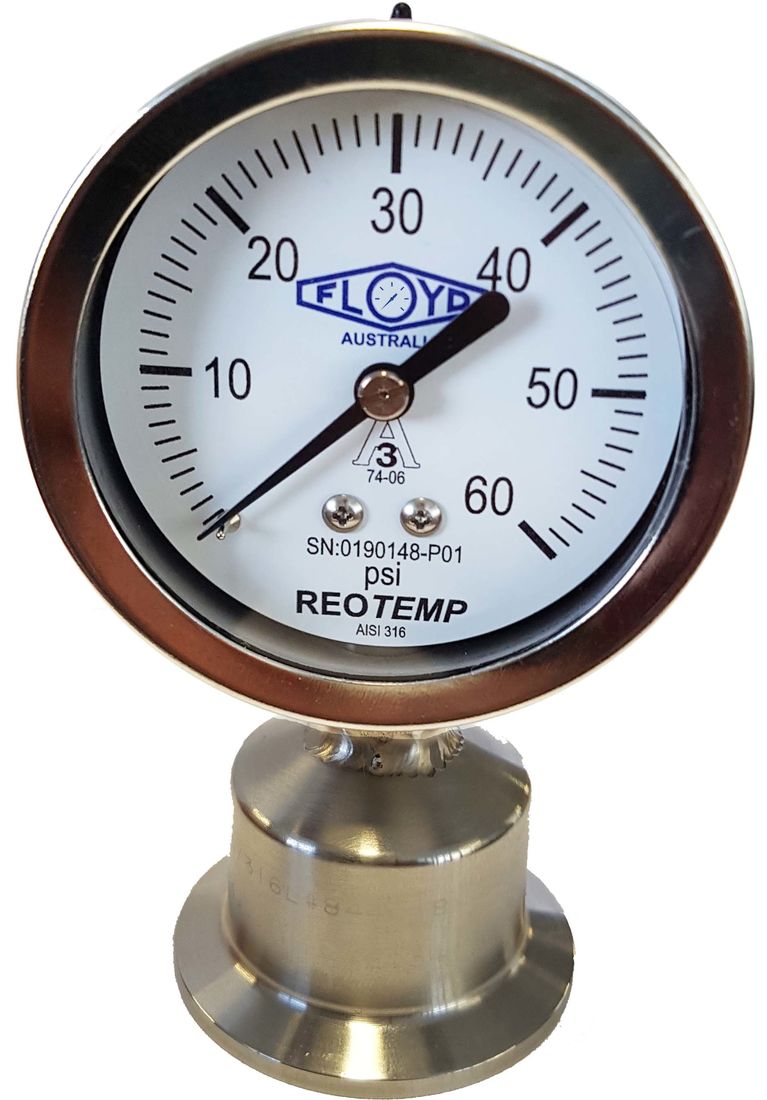

Sanitary Pressure Gauges

Sanitary gauges are specially designed to exceed the demanding safety requirements of the food, dairy, beverage, pharmaceutical, and biotech applications.

Chlorine Pressure Gauges

Designed specifically for use on chlorine service, these gauges are fitted with a PTFE lined or PVC wetted parts diaphragm for gauge protection.

 Differential Pressure Gauges

All stainless steel construction in 100mm and 160mm dial sizes. Differential pressure ranges from 0-25 mBar up to 0-25 Bar with maximum static pressures up to 100 Bar. Can also be offered with electrical contacts and diaphragm seals when the medium contains solids.

Duplex Pressure Gauges

The duplex gauge is also known as a dual pressure gauge, consisting of two independent bourdon tube systems with two independent pointers within one gauge.

Various uses within the general industry are, for reading differential pressures across filters, orifice plates etc. and more commonly on rail transport braking systems. Duplex gauges can also be a big advantage when installed in panels due to the space-saving using only one gauge instead of two. Dials can be produced as a single scale, dual, or even with two different scale ranges, special markings such as colored bands, lines or sectors can also be offered.

These gauges are manufactured to an IP54  rating and will withstand most environmental and mechanical shock conditions with their cast brass or aluminium cases but are not suitable for corrosive applications due to the brass and bronze wetted components.

Schaffer Diaphragm Pressure Gauges

Most commonly used as a tank contents gauge due to its being able to operate at low pressures and on liquids. Also used on mediums that contain solids that may block a standard gauge. Dial sizes are 100mm and 150mm with ranges from -2.5-0 kPa up to 0-60 kPa pressure or vacuum

Diaphragm Seals

For use on corrosive and non-corrosive applications, where the medium may contain solids or solidify which would cause the normal bourdon tubes to be blocked and unserviceable. Diaphragm seals can be fitted to a vast array of pressure/vacuum gauges.

The normal working temperatures of diaphragm seals are 0-100 Degree C but can be rated as high as 300 Degree C when filled with HT silicone oil and the gauge separated from the diaphragm seal using an extended neck or capillary tubing.

Download PDF

Sub-Sea

Suitable for use down to depths of 1200 meters of water and in hyperbaric conditions. Dial sizes available are 63mm, 100mm and 150mm with pressure ranges from 0-6 Bar up to 0-1600 Bar.

Recorders

Pressure, temperature or a combination of both can be offered with these recorders with an option of a 1, 4, 12, 24-hour or 7-day mechanical clock. Chart sizes available are 166mm, 223mm and 300mm in diameter. Pressure ranges are from -1 to 0 Bar up to 1600 Bar and temperature from -200 Degree C up to 800 Degree C.

Syphons

To be used in conjunction with a pressure gauge when the process is steam. The bottom part of the syphon is filled with water which forms a barrier between the gauge and the live steam, thus preventing the gauge from being subjected to too higher temperatures. Available in mild steel or stainless steel with 1/4", 3/8", 1/2" BSP or NPT threads.

Snubber - Pulsation Dampener

Snubbers (Pulsation Dampeners) are used in line with a pressure gauge to suppress line pulsations and keep the pointer steady. They have a combination of a ball check valve arrangement for protection against sudden pressure surges and an adjustable fine thread choke valve to smooth out minor line pulsations.
